Heavy Duty High Frequency Welded Pipe Mill 165mm Max 60m/min
Product Specifications
| Attribute |
Value |
| Product name |
High Frequency Welded Pipe Mill Heavy Duty ERW Pipe Mill Machine Worm Gearing Rectangular 165 * 6mm Pipe Size |
| Adjusting |
worm gearing |
| Running speed |
Max.60m/min |
| Pipe shape |
Round, Square & Rectangular |
| Pipe Diameter |
76 - 165mm |
| Max.Thickness for Round Pipe |
2.0 - 6.0mm |
| Welding Type |
High Frequency Welding |
| Cutting Saw |
Friction Saw Cutting |
| Max.Thickness for Square Pipe |
2.0 - 5.0mm |
| Square Pipe |
60*60 - 130*130mm |
Product Description
ERW165*6mm high precision ERW pipe mill machine max.6 inch

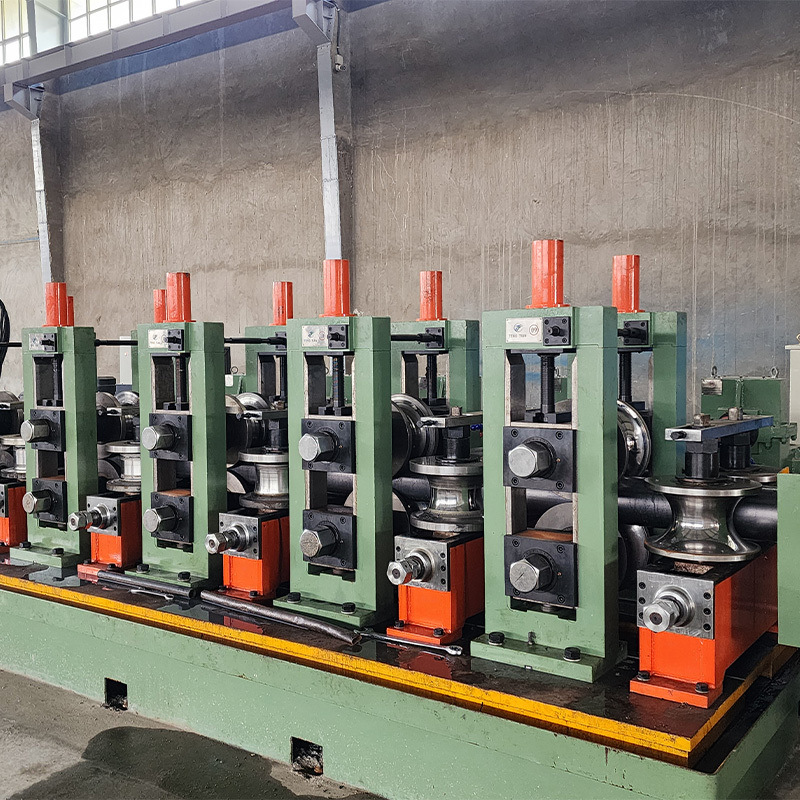

ERW165 high frequency straight welded pipe production line is used to manufacture welded steel pipe of Φ76mm-Φ165mm with 2.0mm-6.0mm of wall thickness, can produce profiled pipe also within the limit of processing round pipe. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Product Advantages
- High precision - between level roller jumps 0.01, between frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1, steel pipe diameter and roundness error≤0.08
- Use Japanese technology to meet high accuracy requirements of foreign clients
- Schedulable use the worm gear and worm adjustment with high adjustment precision
- The scraping scar can be adjusted with 3D adjustment, scraper can rotate ±20° along the steel circle
- Round-to-square conversion uses Turkish head push square, reducing mold weight with stable forming and uniform R Angle
- Level up shaft increases nylon damping block to reduce impact to the shaft and bearing
Production Process
Scroll up -> Uncoil -> Flattening -> End Shear & Butt Welding -> Accumulator -> Forming -> High-frequency induction welding -> Removing external burr -> Cooling -> Sizing -> Cutting -> Checking & Collecting -> Accessing Warehouse
Technical Specifications
1. Raw Material
| Material application |
Hot or cold rolled steel strips, galvanized steel strips |
| Material grade |
Low-carbon steel, low alloy steel: δs≤345Mpa |
| ID of the steel strips |
Φ450-Φ508mm |
| OD of the steel strips |
Φ800-Φ2000mm |
| Coiler weight |
Max.1000kg |
2. Production Range
| Round Pipe |
76 - 165mm | Thickness: 2.0-6.0mm |
| Square Pipe |
60*60 - 130*130mm | Thickness: 2.0-5.0mm |
| Rectangular Pipe |
50*70 - 100*150mm | Thickness: 2.0-5.0mm |
Additional Specifications
- H.F. Welder: GGP400Kw Solid State High Frequency Welder
- Line Speed: Max. 60m/min
- Tube Length: 4-12m
- Cutting Accuracy: ±1mm
- Electric installed capacity: approx. 800KW
- Size of whole line: about 90X8m
As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our high quality, reliable performance and long service life machines have been exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, and Vietnam.
For more information about this high precision ERW pipe mill machine, please contact us.
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
